SH1 is a universal protective cover for card readers. It is recommended for outdoor installations.

Dimensions (W x H x D)                    210 x 225 x 160 mm

BB3 is a flush-mounting kit designed to provide an unobtrusive and aesthetically appealing installation of the K42‚ K44Duo‚ M43‚ PP500-EM and PP500-Cotag.

Dimensions (W x H x D)          117 x 197 mm (external)
85 x 175 x 33 mm (recess)

BB4 is a flush-mounting kit designed to provide an unobtrusive and aesthetically appealing installation of the BC615 Magstripe and the BC43.

Dimensions (W x H x D)          145 x 255 mm (external)
115 x 230 x 43 mm (recess)

BB4Prox is a flush-mounting kit designed to provide an unobtrusive andaesthetically appealing installation of the BC615-EM and BC615-Cotag.

Dimensions (W x H x D)          145 x 255 mm (external)
115 x 230 x 43 mm (recess)

BB5 is a flush-mounting kit designed to provide an unobtrusive and aesthetically appealing installation of the BM3‚ BM31.

Dimensions (W x H x D)          117 x 260 mm (external)
85 x 235 x 33 mm (recess)

BB6 is a flush-mounting kit designed to provide a discreet and secure installation of PR500-EM and PR500-Cotag. It hides the reader.

Dimensions (W x H x D)          117 x 200 mm (external)
85 x 175 x 33 mm (recess)

BB7 is a flush-mounting kit designed to provide a discreet and secure installation of the IP811 reservation terminal.

Dimensions (W x H x D)          388 x 211 x 43 (external)
354 x 140 x 40 mm (recess)

CR1 is required when a BC615‚ BC615-EM or BC615-Cotag is connected to a SiPass Entro segment controller. It converts between RS232 and RS485.

Dimensions (W x H x D)          120 x 80 x 40 mm

IF1 is an interface box that enables the easy connection of a PC (or printer) to a SiPass Entro segment controller. It is supplied with a 15-meter-long cable (not shown).

Dimensions (W x H x D)           85 x 85 x 63 mm

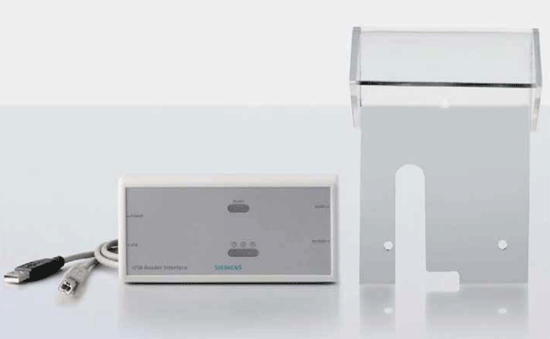

The USB-RIF/2 supports the Clock&Data and Wiegand 26-bit interfaces for connecting readers. It is delivered with a one-meter-long USB cable.

It can be used in either SiPass Entro or SiPass integrated for:

- Easy enrolment of cards and tags into the system
- Fast search for cardholder/ person

In SiPass Entro it can also be used as a login reader to support authentication via card/tag to the software.

Please also see the TG-EM USB and TG-Cotag USB reader kits (SiPass Entro core software section)‚ which include a PR500 reader and a desk stand as well as a USB-RIF/2 interface.

Dimensions (W x H x D)           140 x 66 x 28 mm

This tamper kit can be used with the DC22‚ SR35i and ACC-Lite. It triggers a tamper alarm in the system if the controller is removed from the wall.

This nameplate is made of rugged metal and unbreakable glass. It is intended for use with laserprinted sheets. It includes a CD-ROM with ready-made templates in MS Word for 12‚ 21 or 30 rows.

Dimensions (W x H x D)          170 x 263 x 20 mm

This nameplate is made of rugged gold-coloured metal and unbreakable glass. It is intended for use with laserprinted sheets. It includes a CD-ROM with ready-made templates in MS Word for 12‚ 21 or 30 rows.

Dimensions (W x H x D)          170 x 263 x 20 mm

This profile has 16 rows designed for 13 mm text strips.

This package includes 20 extra sheets for use with an NTFlex nameplate and a CD-ROM with ready-made templates in MS Word for 12‚ 21 or 30 rows.

TA12 is a transformer with output voltage 11 VAC.

Input voltage                                    230 V, 50-60 Hz
Output voltage                                 11 VA
Power output                                   38 VA
IP rating                                             IP44
Dimensions (W x H x D)                77 x 138 x 70 mm
Weight                                               1.10 kg

TA24 is a transformer with output voltage 24 VAC.

Input voltage                                    230 V, 50-60 Hz
Output voltage                                 24 VAC
Power output                                   38 VA
IP rating                                            IP44
Dimensions (W x H x D)               77 x 138 x 70 mm Weight                                              1.11 kg

TA12/ST is a transformer with output voltage 12 V filtered DC.

Input voltage                                    230 V, 50-60 Hz
Output voltage                                 12 V filtered DC
Power output                                   16.8 VA
IP rating                                             IP44
Dimensions (W x H x D)                72 x 120 x 63 mm Weight                                               0.90 kg

TA24/ST is a transformer with output voltage 24 V filtered DC.

Input voltage                                    230 V, 50-60 Hz
Output voltage                                 24 V filtered DC
Power output                                   24 VA
IP rating                                            IP44
Dimensions (W x H x D)                77 x 138 x 70 mm Weight                                               0.90 kg

ACK5100 is used to create a serial connection between a PC and the AC5100 advanced central controller for configuration.

ACK5110 is used to create a serial connection between the AC5100 advanced central controller and a modem using a DB25 connector.

AAD4011-HF is a special cable for SiPass Entro designed to simplify system cabling. It contains 3x twisted pairs. The larger diameter pair is for power and two smaller diameter pairs are for data. This cable has excellent electrical properties with respect to minimising voltage drops associated with long cable runs.

The ACS6311 I/O board is required for standalone operation of the ARS6311-RX card reader. When an ARS6311-RX card reader is configured for standalone operation (offline mode)‚ it can independently control access via a single door. A standalone access control installation can contain one ARS6311-RX reader (to monitor entries only) or two ARS6311-RX readers (one for entries and one for exits).

E7 is used for special applications such as achieving a voltage-free connection. It includes two separate outputs. The user can select either voltage or potential-free output (removable jumpers).

Weight          0.07 kg

SK5 eliminates the possibility of opening a lock by using battery power directly on the outgoing lock cables. It fits all products with a tamper switch and it includes a buzzer with a reset button and an alarm output.

Weight          0.11 kg
