Ideal for a wide range of standard applications and environments, the range of Intrunet E-Line detectors was designed with the installer in mind.

They deliver new levels of installation flexibility and speed thanks to innovative design features. The End of Line concept, unique on the market, makes detector wiring quicker, simpler and error-free. Add to this independent PIR and Microwave sensitivity adjustment, pet immunity with creep zone protection, and a detection range adjustment capability which delivers the widest spectrum on the market – and installers can now address the varied requirements they face with each new installation with one compact detector family, and reduce their stock levels and costs in the process.

- Optimal price/performance for a wide range of applications
- The shortest installation time on the market thanks to unique design features
- Highest installation flexibility thanks to unique sensitivity adjustment capability and pet immunity with
look down zone combination
- Family design approach and innovative functionality reduce inventory complexity and costs
- Superior detection quality and reliability
- The first detector family independently certified to meet the latest EN50131 standards

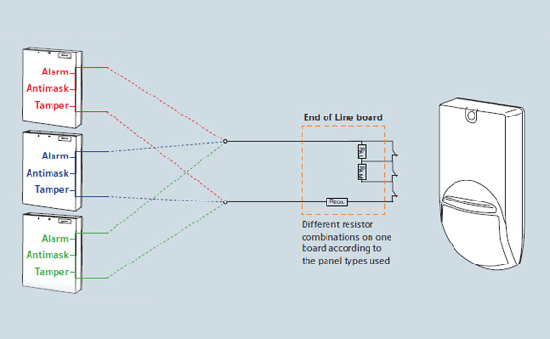

With E-Line detectors, installers have the unique flexibility to choose whether to use the End of Line boards (EoL) with selectable resistor values for the most commonly available control panels.

With conventional detectors, resistors for Alarm, Tamper and Antimask need to be individually wired and their values chosen based on the control panel used.

With E-Line detectors, no individual resistor wiring is required: just select the appropriate resistor values via DIP switches on the EoL board, then plug the board directly onto the detector’s PCB. That’s it! This smart and unique concept dramatically reduces the complexity of wiring inside the detector. This reduces the risk of cabling errors and makes fault finding much quicker.

The Intrunet E-Line PIR detectors deliver the fastest installation time on the market thanks to their innovative End of Line concept. High precision Fresnel optics and progressive signal analysis are combined to deliver best in class detection reliability and quality. Ideal for residential and commercial applications‚ they offer the highest false alarm immunity thanks to wide ranging functionality‚ including flexible sensitivity adjustments‚ white light and temperature compensation‚ and pet immunity for all round performance and installation versatility.

This Grade 2 detector offers a 6-18 m volumetric detection range (12 m as standard), and a 20 m curtain range. Switchable pet immunity 12 - 30 kg.

This Grade 3 detector offers a 6-18 m volumetric detection range (12 m as standard), and a 20 m curtain range. Switchable pet immunity 12 - 30 kg. The ADM-Q12T detector offers flexible sensitivity adjustments for PIR and MW‚ antimask‚ and pet immunity (12 kg) with creep zone protection.

The ADM-I12W1 is a Grade 2 wireless passive infrared detector with high precision Fresnel optics and a wide range of functionalities, such as pet immunity and flexible sensitivity adjustments. It offers a 6-18 m volumetric detection range (12 m as standard), and a 20 m curtain range. Switchable pet immunity 12 - 30 kg.

The Intrunet E-Line PIR detectors deliver the fastest installation time on the market thanks to their innovative End of Line concept. High precision Fresnel optics and progressive signal analysis are combined to deliver best in class detection reliability and quality. Ideal for residential and commercial applications‚ they offer the highest false alarm immunity thanks to wide ranging functionality‚ including flexible sensitivity adjustments‚ white light and temperature compensation‚ and pet immunity for all round performance and installation versatility.

Grade 2 PIR and Microwave detectors based on the "X-Band" or "K-Band" frequencies (10 or 24 GhZ). The detector offers a 6-18 m volumetric detection range (12 m as standard), and a 20 m curtain range. Switchable pet immunity 12 - 30 kg.

- ADM-QXA12 = 10.525 GhZ
- ADM-QXB12 = 9.9 GhZ
- ADM-QXC12 = 10.687 GhZ
- ADM-QKA12 = 24.125 GhZ

Grade 3 PIR and Microwave detectors based on the "X-Band" or "K-Band" frequencies (10 or 24 GhZ). The detector offers a 6-18 m volumetric detection range (12 m as standard), and a 20 m curtain range. Switchable pet immunity 12 - 30 kg.
The detectors offer flexible sensitivity adjustments for PIR and MW‚ antimask‚ and pet immunity (12 kg) with creep zone protection.

- ADM-QXA12T = 10.525 GhZ
- ADM-QXB12T = 9.9 GhZ
- ADM-QXC12T = 10.687 GhZ
- ADM-QKA12T = 24.125 GhZ

The curtain lens has overlapping coverage zones in order to form a complete monitored area and to detect persons passing through. The field of view is covering a curtain area up to 25 m. The package consists of 12 pieces. For use with non-antimask (Grade 2) detectors only.

The white light filter is suitable for all ADM-xxx detectors. The filter absorbs white light for complete detector functionality up to 10‚000 Lux. The package consists of 12 pieces.

The wall and ceiling brackets provide versatile detector installation options. Once installed, accurate positioning is achieved by swivelling the detector into place.

The wall and ceiling brackets provide versatile detector installation options. Once installed, accurate positioning is achieved by swivelling the detector into place. Includes a tamper switch for Grade 3 applications.
