Visilynx
Visilynx V3i - Compact Video Matrix
Compact video matrix 32 video inputs / 8 monitor outputs
2 units cascadable: 64 video inputs / 16 monitor outputs
Video inputs with BNC loop-through, 75 Ohm termination switchable
Independent video loss detection per video input
Optional quad video output card
Multiple telemetry control protocols: Coax telemetry control via BNC video line with MOLYNX-C
Variable speed control of PTZ and speed dome devices
Flexible text overlay with up to 18 characters and 14 rows
Multiple alarm handling
Support of V3-K and CKA4820 control keyboards
Integration into video software IVM
Powerful programming software “VisiPC”

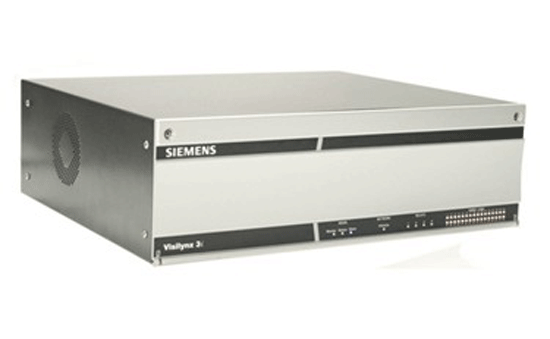

The Visilynx 3i (VIS3I-328) is a 32 loop-through input by 8 output full cross-point video matrix node contained in a 19” wide by 3U high enclosure.
Two identical units can be connected together using an expansion cable to double the size of the video matrix to 64 loop-through input by 16-output full cross-point switcher. In this configuration, one of the two units can be set to be the master and this can connect to a Visilynx control network, whilst the other is set to be the slave unit. Up to 127 nodes can be connected together to form a distributed video switching network. The video connections between nodes are made by trunk connections.In a networked system, a keyboard at one node may view and control cameras, VCR/DVRs and multiplexers at any other node. It may also respond to alarms from other nodes. The number of video inputs from remote nodes that can be viewed at any one time is governed by the number of available trunk connections between the nodes.VIS3I-328 can be expanded, by fitting up to two optional Visilynx 3 quad cards (type VIS3-QUAD). In a single VIS3I-328 with 8 monitor outputs, each quad card makes available the equivalent of an additional 4 monitor outputs.
The main user interface device of the VIS3I-328 system is the Visilynx 3 keyboard. A single keyboard may be powered by a single VIS3I-328, and a further 15 keyboards (V3-K) with local power supplies may be addressed. Each VIS3I-328 is designed to be used free standing (as supplied) or fitted into a standard 19” rack cabinet.
The VIS3I-328 is supplied with a powerful configuration and test software called VisiPC, which you should install onto a suitable PC. This forms the heart of the system's configuration and test capability.
