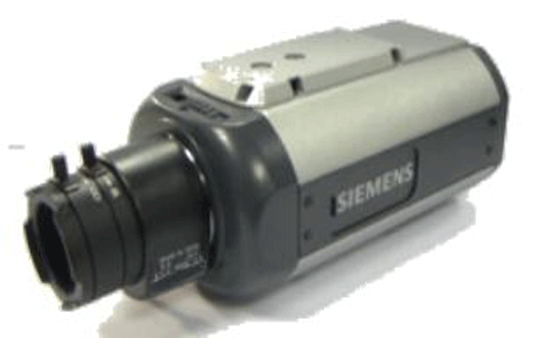

CCBB1225 - 1/2" DSP High Resolution, OSD, 580 TV Lines
High Resolution 580 TVL DSP monochrome camera
12 VDC / 24 VAC
CCIR 50 Hz
Excellent sensitivity to IR illumination
Extended dynamic range for back-light compensation
Low speed shutter, integrated picture storage, and peak white inversion
Easy on-screen adjustment and remote controll via serial interface
High-resolution 1/2” monochrome camera including all features of the newest camera and chip technology with improved infra red sensitivity. Advanced features include 49-zone programmable back-light compensation, wide dynamic, peak-white inversion and adjustable electronic shutter, ensuring the best images all of the time. The camera includes a built-in ID system for addressing (via RS485 or TTL) and setup is via on-screen display menu, or via remote setup software. An alarm input triggers up to 4 digital images, stored in the camera and accessible remotely. Supplied with operation and parameterisation software.
CCBB1345 - 1/3" DSP High Resolution, DIP, 580 TV Lines
High resolution 580 TVL DSP monochrome camera
12 VDC / 24 VAC, 100 ~ 240 VAC
CCIR 50 Hz, EIA 60 Hz
Easy DIP-switch camera setup
Backlight compensation BLC
Line-lock synchronisation
Picture-sharpness selectable: sharp / soft
CCBB1345 is a 580 TVL high resolution monochrome camera which provides crisp, aperture corrected images for surveillance applications requiring detailed images.
High resolution
CCBB1345 provides clear and crisp 580 TVL monochrome video pictures which allow the camera to be used in a wide variety of applications, showing even small picture details.
Easy setup
All camera adjustments are performed via DIP switch. The settings provide powerful functionality such as selection of back-light compensation, automatic exposure shutter for usage of manual and auto-iris lenses,
line-lock function and sharpness selection. DIP switches are located behind a discreet side panel. Improved back-focus wheel-setup mechanism provides easy camera installation.
Line lock
AC powered cameras feature phase adjustable line-lock for "roll-free" switching on multi-camera installations.
